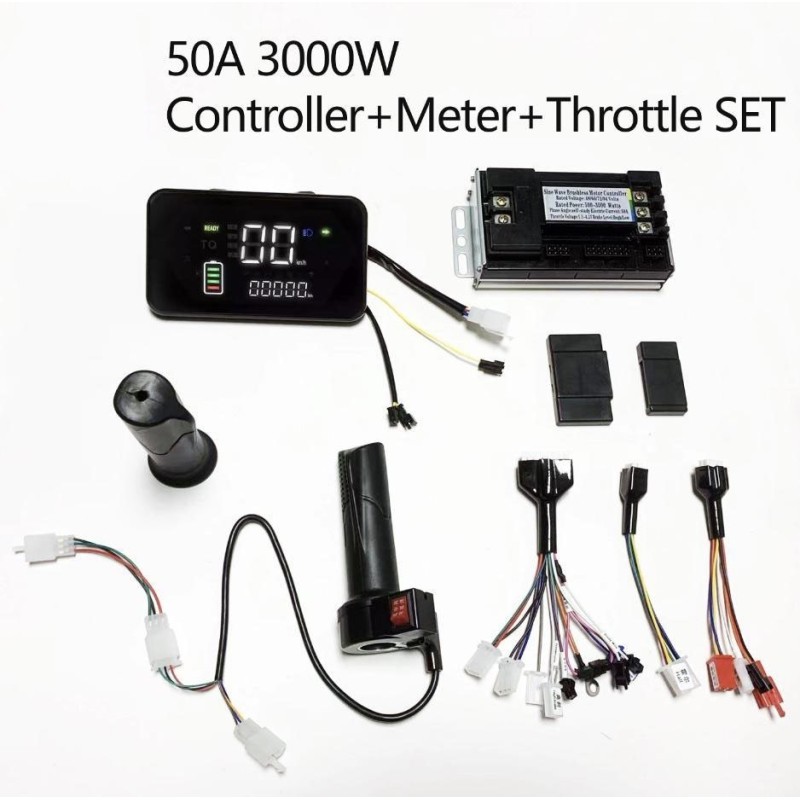

Sinusoidalnyi brushless motor kontroller kit 48V 84V 50A 3000W s ruchek gaz i displeem

SHB0768F osnashchyon debug-kabelem: DV (obuchenie cherez debug-kabel, obuchenie gazu).

Intellektual'noe raspoznavanie napryazheniya: 48V / 60V / 72V (rezhim obucheniya raspoznaet 60V / 72V).
Zashchita ot ponizhennogo napryazheniya: 40V / 50V / 60V.
Avtomaticheskoe raspoznavanie pri vklyuchenii na 72V.
Normal'nyy rezhim nizkogo napryazheniya.
Signal nizkogo urovnya A3.
Nizkiy tormoz L.

Pereklyuchenie skorostey

• Trekhskorostnoy pereklyuchatel':
  • K1: nizkaya skorost'
  • K2: vysokaya skorost'
• Trekhskorostnaya knopka ZL:
  • Nizkiy rezhim: 80 %
  • Sredniy rezhim: 100 % (po umolchaniyu)
  • Vysokiy rezhim: 110 %
  • 129 % s Hall-effektom motor-kolesa

Dopolnitel'nye funktsii

• Elektronnaya protivoprobuksovka na vysokoy skorosti
• Protivoprobuksovka v pokoe (bez dvizheniya)
• LCD-displey F3 (standartnyy protokol Yadi)
• Pri nazhatoy tormoznoy ruchke i polnom gaze povernut' gaz tri raza dlya smeny protokola New Thinking / Yadi Guanneng / Emma / Tailing (s pamyat'yu)
• Nastroivaemyy ABS v stupitse (po umolchaniyu vyklyuchen, bez differentsiala)
• Nastroivaemyy pik kvadratnoy volny (rezerv 5)
• Nastroivaemyy pik toka (+8) (rekomenduetsya MOSFET s bolee vysokimi kharakteristikami)
• Nastroivaemyy pik sinusoidal'noy volny (faznyy tok)
• Rezhim bez datchikov Hall s vozmozhnost'yu pereoborotov
• Rezhim RXD s vyveshennym kolesom

Signaly i soedineniya

• Nizkiy tormoz L
• Protivougonnaya signalizatsiya A3
• TP / NC
• GND (zemlya)
• VCC elektricheskiy zamok
• LCD-displey F3
• Vysokiy tormoz
• DC
• RXD
• Signal gaza SD
• 5V
• HC / HA / HB

Detal'nye soedineniya

• VCC elektricheskiy zamok: pitaniye zamka
• Power +: polozhitel'noe pitaniye
• Signal dvizheniya kolesa C
• Pribor YB
• GND: zemlya
• Q
• Obuchayushchiy kabel' DV
• Trekhskorostnaya knopka ZL
• Pereklyuchatel' nizkoy skorosti K1
• Pereklyuchatel' vysokoy skorosti K2
• Gaz 4,3V
• 5V
• Vneshnee programmirovanie CLK
• GND

Logika raboty datchikov Hall

1. Sinusoidal'naya volna s odnim datchikom Hall (odin Hall povrezhden): pereklyuchenie vozmozhno dva raza; pri tretem sboe sistema prinuditel'no perekhodit v rezhim odnogo Hall.
2. Sinusoidal'naya volna bez datchikov Hall (neispravnost' zazemleniya Hall): pereklyuchenie vozmozhno dva raza; pri tretem sboe sistema perekhodit v rezhim bez Hall.
3. Iz odnogo Hall v bez Hall: esli snachala povrezhdaetsya odin datchik Hall, sistema srazu perekhodit v rezhim bez Hall.
4. Vo vsekh sluchayakh pri povtornom vklyuchenii proveryaetsya sostoyanie datchikov Hall i vosstanavlivaetsya sootvetstvuyushchiy rezhim.

Prochie parametry

• Ogranichenie toka: 40A
• Plavnyy start: +13
• Bez zashchity po temperature
• Individual'naya nastroika pod motory klienta
• Pozitsiya P knopkoy: TXD vkhodit v pozitsiyu P po umolchaniyu pri vklyuchenii; motor osvobozhdaetsya bez dvizheniya; tormoz takzhe mozhet osvobodit' motor
